Flow Elements

Flows can be enhanced with interactive components designed for multi-page experiences. They capture user input, show progress, or request permissions. Use them to personalize the flow or gather information for branching.

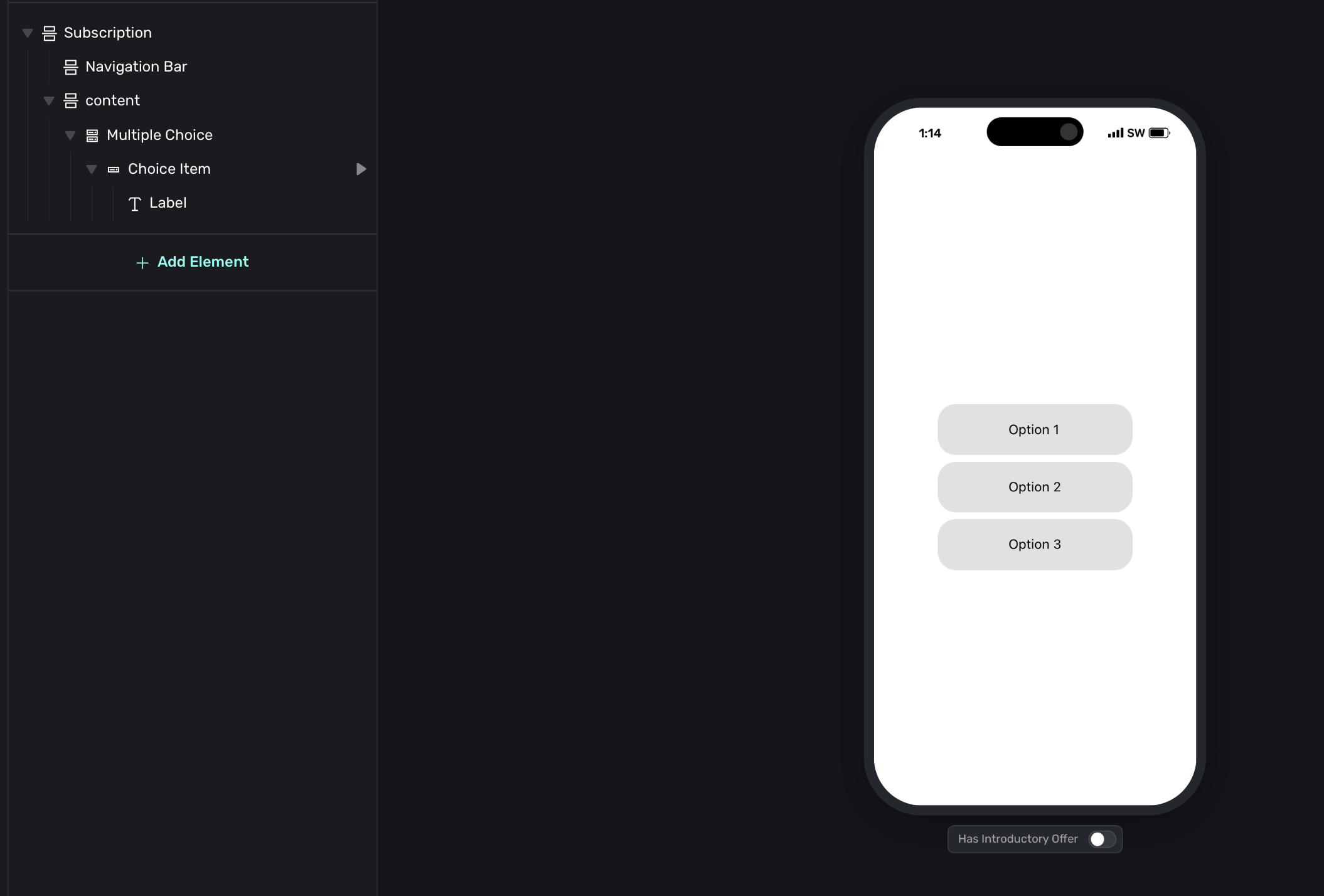

Multiple Choice

The multiple choice element presents options for users to select. This is the key element for enabling branching. User selections can determine which page they see next.

Configuration

• Single-select or multi-select: Choose whether users can pick one option or multiple.
• Randomize order: Shuffle the options each time (useful for surveys to reduce bias).
• Choice items: Each choice has a label and a value.

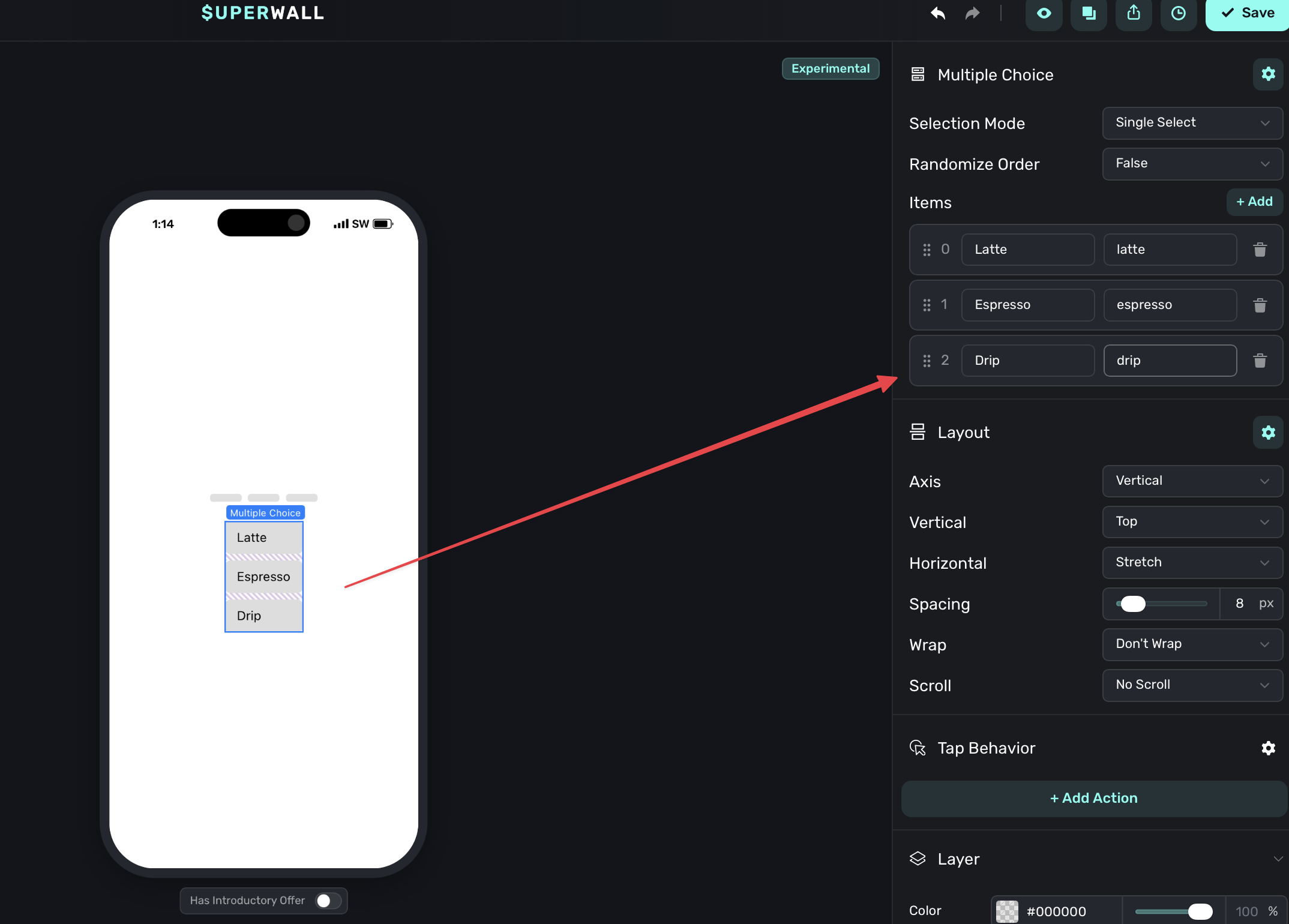

Labels and values

Each choice has two parts:

• Label: What users see (e.g., "Grow subscriptions").
• Value: What gets stored (e.g., goal_grow).

The value is used internally for routing conditions and user attributes. Keep values short and consistent (lowercase, underscores).

Storing selections

When a user makes a selection, you can store it as a user attribute or trigger an event. This lets you use the selection in routing conditions to branch the flow, access the data later for analytics or personalization, or pass the value to your backend via webhooks.

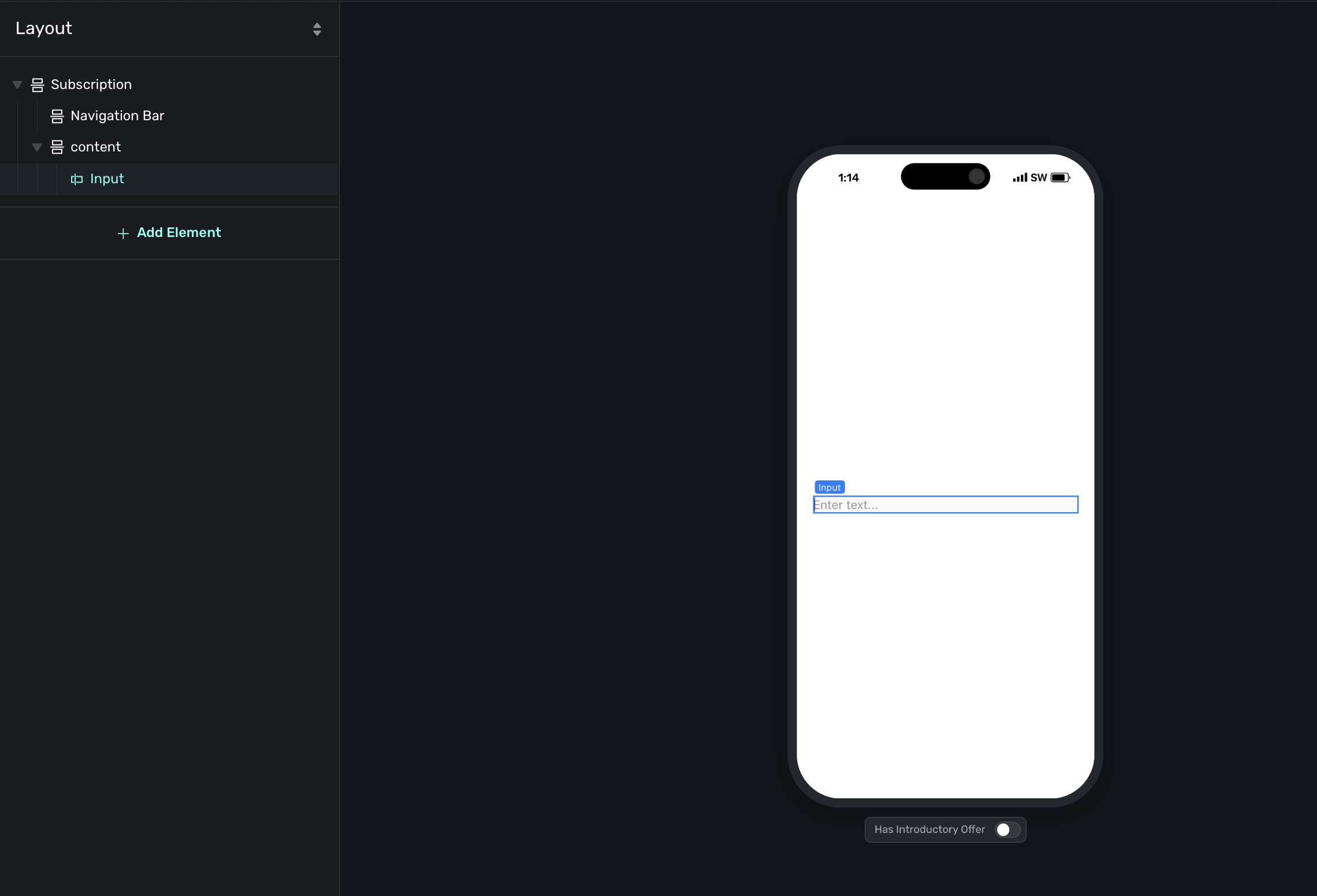

Input

The input element lets users type a response, like their name, email, or feedback.

Configuration

• Placeholder text: The hint shown before users type.
• Keyboard type: Choose the appropriate keyboard (default, email, number, etc.).

Storing responses

Like multiple choice, text entry values can be stored as user attributes. This is useful for personalizing later pages with the user's name, capturing email addresses for follow-up, or collecting feedback or custom responses.

Indicator

The indicator element shows progress through the flow, like "Step 2 of 5."

Configuration

• Style: Choose from different visual styles (dots, bars, numbers).
• Current step: Which step to highlight.
• Total steps: How many steps to show.

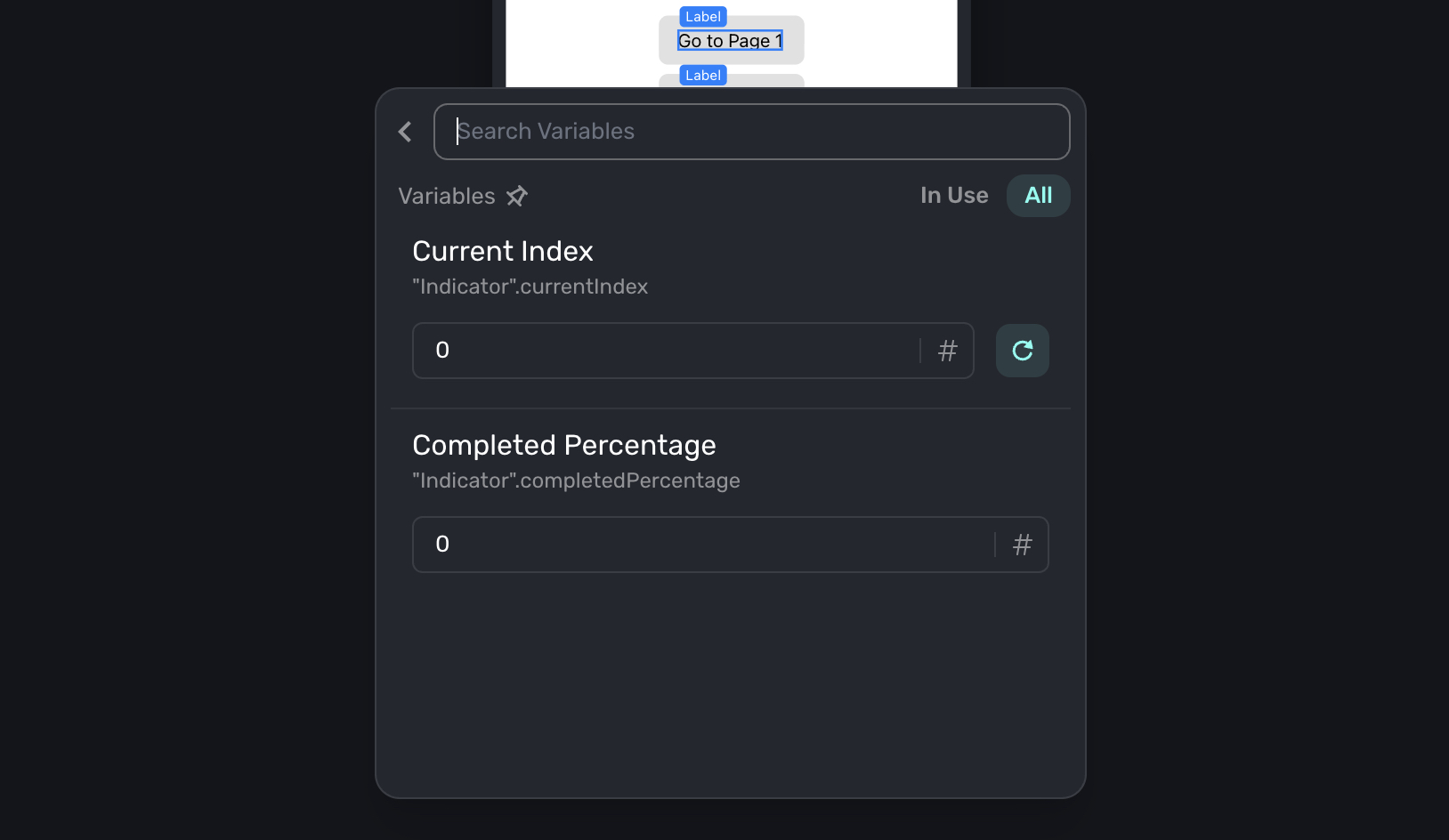

Add an indicator when your flow has more than 3-4 pages. Users are more likely to complete a flow when they can see their progress and know how much is left. You can also use their properties in dynamic values such as progression:

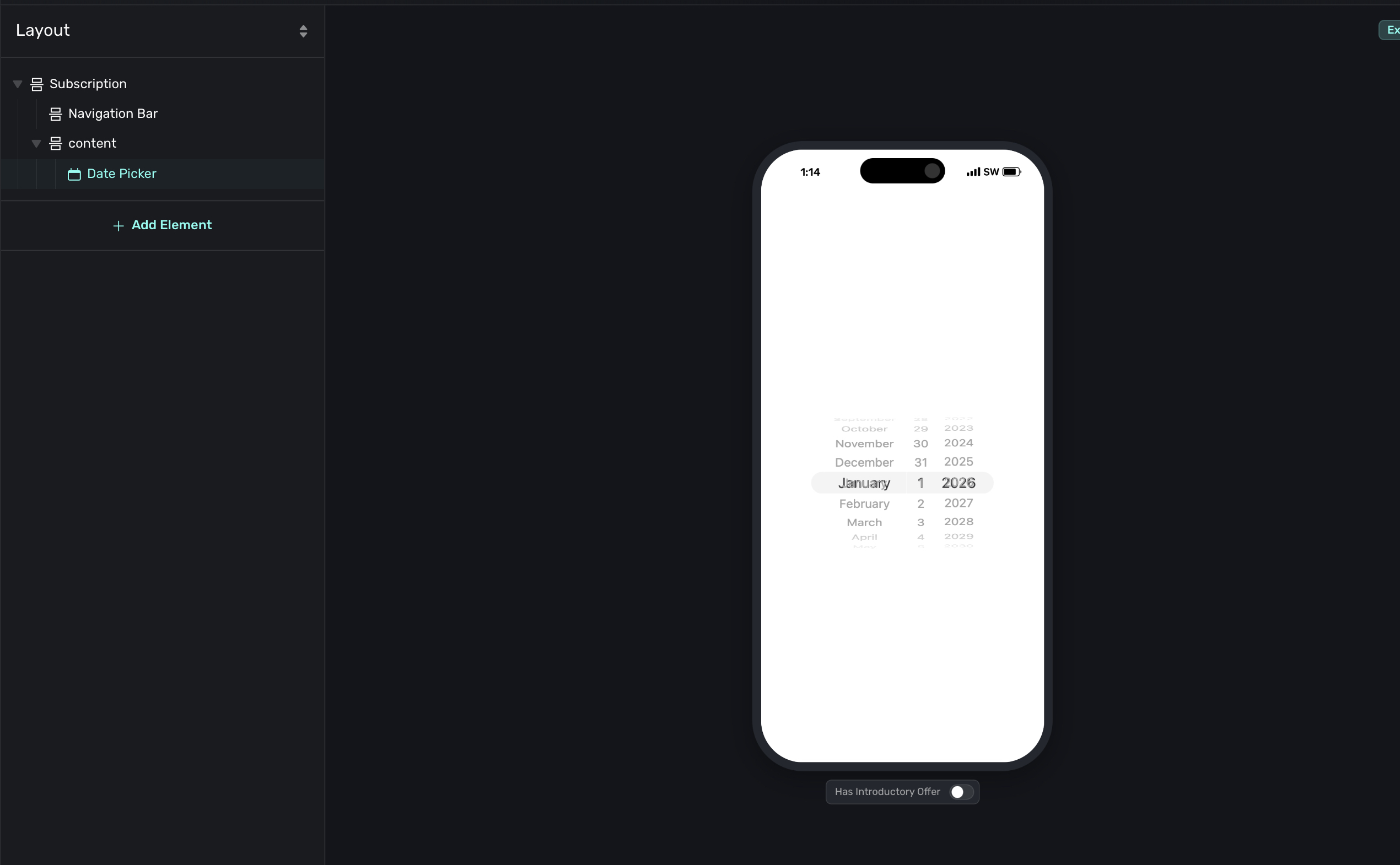

Date Picker

The date picker element lets users select a date, time, or both using a scrollable wheel or compact input. This is useful for collecting birthdates, scheduling preferences, or any date-related input during onboarding.

Configuration

• Style: Choose between Wheel (scrollable columns) or Compact (native date/time input).
• Components: Choose what to collect.
  • Wheel style supports Date & Time, Date, Time, and Time List (a single scrolling column with pre-formatted time options).
  • Compact style supports Date and Time.
• Min Date / Max Date: Constrain the selectable range. Options are No Limit, Today, Relative (e.g., 30 days before or 1 year after today), or a Fixed Date.
• Minute Interval: When using a time component with the wheel style, set the interval between selectable minutes (1, 5, 10, 15, 30, or 60).

Storing selections

The selected value is stored as a string and accessible as a variable. The format depends on what components are configured: YYYY-MM-DD for date, HH:MM:SS for time, or YYYY-MM-DDTHH:MM:SS for date and time. You can use this value in routing conditions, dynamic content on later pages, or pass it to your backend.

Permission Prompts

Requesting permissions is a natural part of many flows, especially onboarding. Rather than prompting for notifications or location access at a random moment, you can ask at the right point in a flow after the user understands the value.

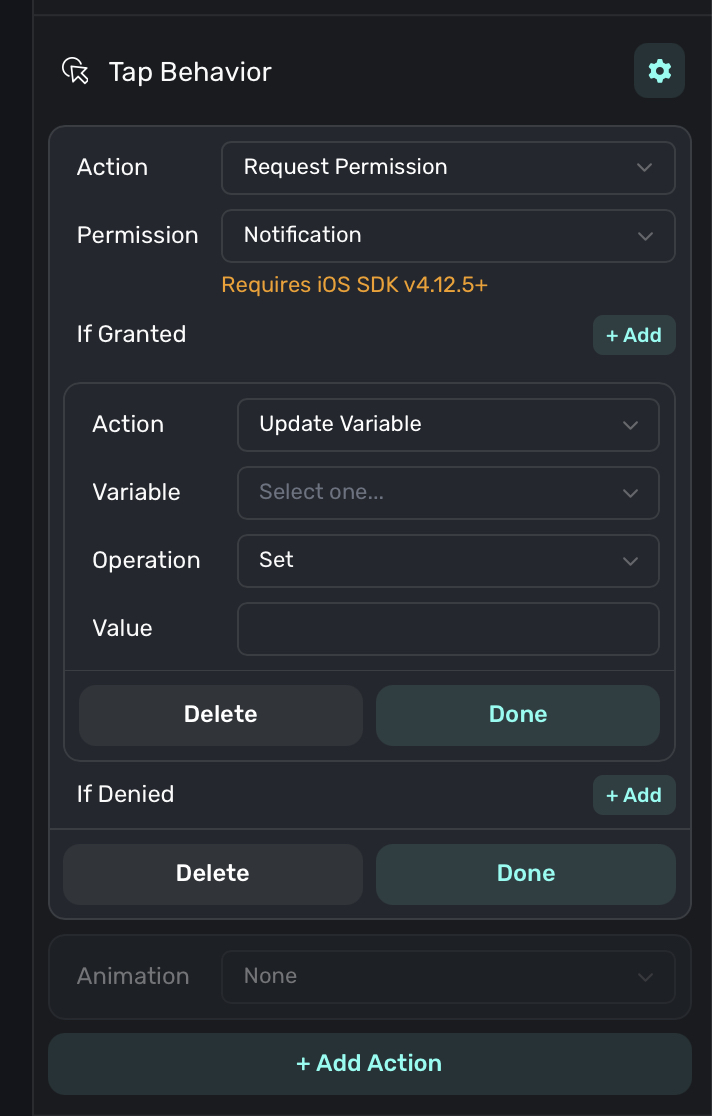

Permission prompts are not a standalone element. They are a tap behavior called Request Permission that you attach to a button or other tappable component. When the user taps it, the system permission dialog appears.

Available permissions

• Notification: Ask for permission to send system notifications.
• Background Location: Request location access when the app isn't in use.
• Location: Request location access while the app is in use.
• Read Images: Access the user's photo library/camera roll.
• Contacts: Access the user's contacts.
• Camera: Access the device camera.
• App Tracking Transparency: Ask to track the user across apps and websites.
• Microphone: Access the device microphone.

If Granted / If Denied

You can add follow-up actions that run depending on the user's response. Use the If Granted section to add actions that run when the user allows the permission, and If Denied for when they decline. For example, you could navigate to the next page on grant, or show a different page explaining why the permission matters on deny.

Best practices

• Request permissions after providing value. Users are more likely to accept.
• Explain the benefit clearly (e.g., "Get notified about exclusive deals").
• Consider placing permission prompts after a purchase or key engagement moment.

For more guidance on iOS, view Apple's Human Interface Guidelines here.
